1500 Below Grade Sampling Station

MODEL 1500 BELOW GRADE SAMPLING STATION "ALL-IN-ONE"

Model # 1500

Product Description

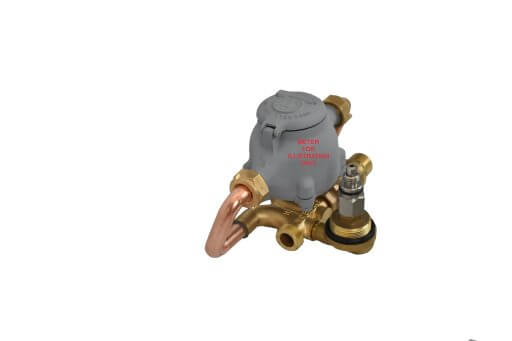

The Model 1500 line of below grade sampling station is a meter re-setter design intended to be installed in an existing meter pit.  Simply remove an existing meter, install the Model 1500 All-In-One sampling station, then re-install your existing meter.  The Model 1500 provides a quick and easy sampling point at an existing meter location.  The sampling point is on the side of the re-setter. The main advantage of this unit is the ease of installation — no digging and very little plumbing.

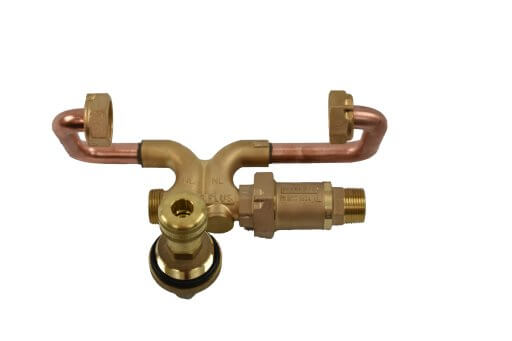

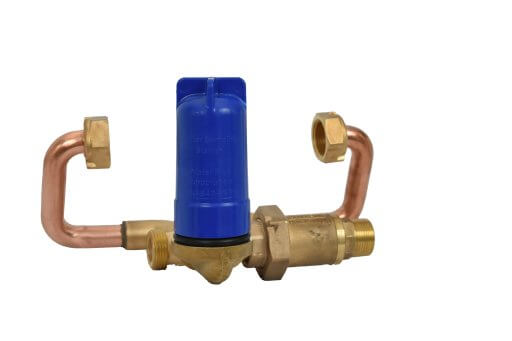

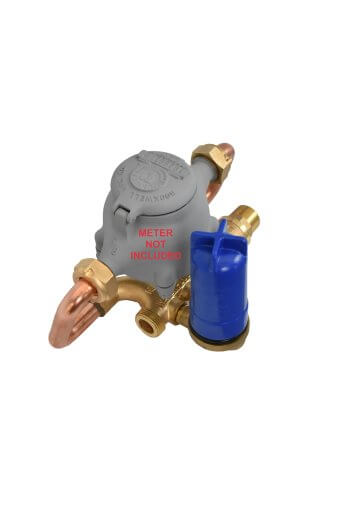

The unit consists of a meter re-setter, a dual check backflow preventer, a quick connect sampling port with a protective “dirt” cover for the sampling port. The 1500 line is constructed of bronze, brass and copper.  The unit is available for every size meter up through one inch.  See the size selector below

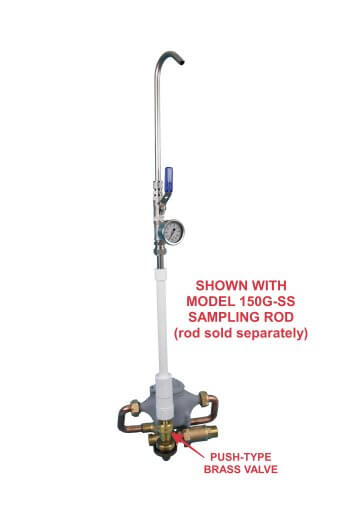

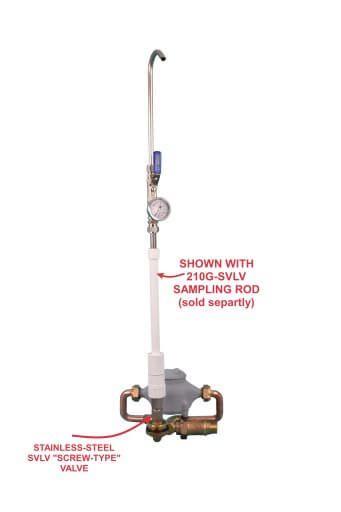

Water samples are taken through the side-mounted quick connect fitting using a portable Sampling Rod, which is carried from site to site by the operator. The sampling rod is sold separately.

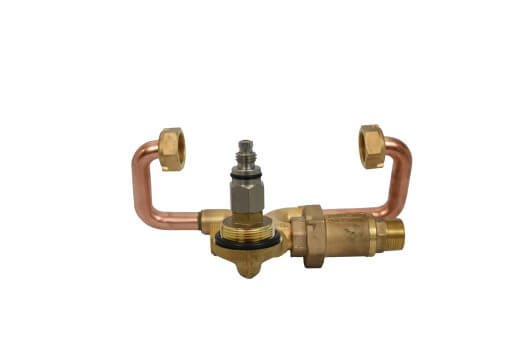

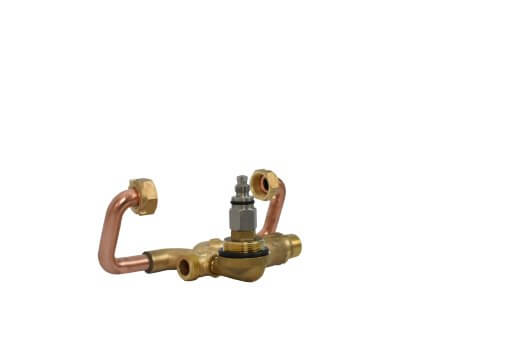

Two types of quick connections are available: the standard brass “snap-in” quick connect or the stainless-steel “screw-on” connection.  The standard brass “snap-in” connector is usually indicated by “NL” Suffix on Model Number and the screw type connection is indicated by “SVLV” Suffix on Model Number.

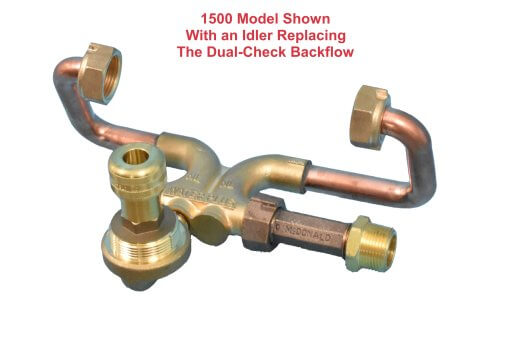

This unit is also available without backflow protection.  The backflow is replaced with an idler.  See picture that depicts the unit without a backflow preventer.

Installs In Existing Meter Pit

As Easy As 1,2 3:

  1. Remove Existing Meter
  2. Install the Sampling Station
  3. Reinstall Your Existing Meter

Ordering Information:

MODEL / PART NUMBER METER SIZE METER LAYING LENGTH QUICK CONNECT VALVE TYPE SAMPLING ROD MODEL REQUIRED
1500-ST58-NL 1/2″ OR STRAIGHT 5/8 7.5 INCHES BRASS PUSH TYPE 150G-SS
1500-ST58-SVLV 1/2″ OR STRAIGHT 5/8 7.5 INCHES STAINLESS-STEEL SCREW TYPE 210G-SVLV
1500-5834-NL 5/8″ X 3/4″ 7.5 INCHES BRASS PUSH TYPE 150G-SS
1500-5834-SVLV 5/8″ X 3/4″ 7.5 INCHES STAINLESS-STEEL SCREW TYPE 210G-SVLV

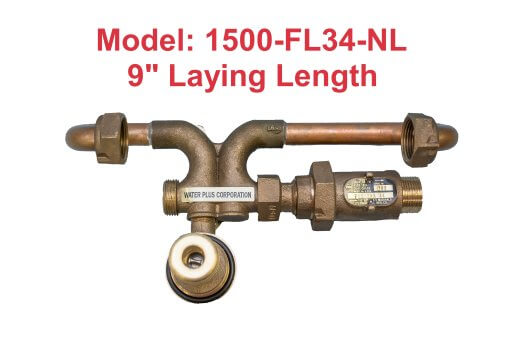

1500-FL34-NL 3/4″ 9 INCHES BRASS PUSH TYPE BRASS PUSH TYPE
1500-FL34-SVLV 3/4″ 9 INCHES STAINLESS-STEEL SCREW TYPE STAINLESS-STEEL SCREW TYPE

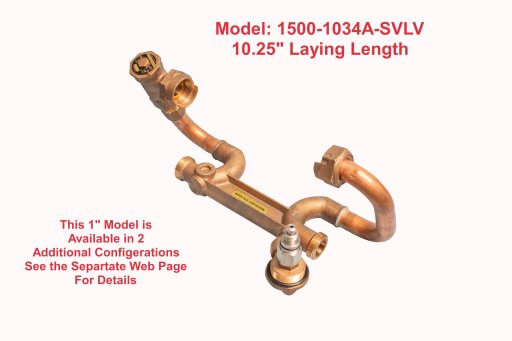

*1500-1034A-NL 1″ 10.25 INCHES BRASS PUSH TYPE BRASS PUSH TYPE
*1500-1034A-SVLV 1″ 10.25 INCHES STAINLESS-STEEL SCREW TYPE STAINLESS-STEEL SCREW TYPE

*Note that the 1″ units have an additional web page with more detailed information.



Contact Us to Order

  • Features

    • Two Types of Quick Connects Available
    • Provides Sampling Point on Public Right-of-Way
    • Simple, Quick Installation – Saves Labor
    • Provides Backflow Protection
    • All, Brass, Bronze and Copper Construction
    • Available in Four Meter Sizes, 5/8”, 5/8”x3/4”, Full ¾ and 1”
    Contact Us to Order

  • Installation Information

    • Location: Below Grade
    • Climate: Mild Weather
    Contact Us to Order

  • Quick Connection Type

    • NL = Brass “Snap-In”
    • SVLV = Stainless Steel “Screw-On”
    Contact Us to Order

  • Installation Information

    • Location: Below Grade
    • Climate: Mild Weather

  • Downloads

  • Quick Connection Type

    • NL = Brass “Snap-In”
    • SVLV = Stainless Steel “Screw-On”
