Model 1500-1034x-xx Below Grade Sampling Station

One Inch Below Grade Sampling Station

Model # 1500-1034x-xx

Product Description

The Model 1500-1034 below grade sampling station is a meter re-setter design. It is intended to be installed in an existing meter pit in place of the existing meter, and the meter is reinstalled in the new re-setter. The sampling point is on the side of the re-setter.  The main advantage of this unit is the ease of installation with no digging and no plumbing.

The unit re-setter is available in 3 configurations:

  1. Angled Backflow Only
  2. No Angled Backflow and No Angled Curb Stop
  3. Angled Backflow and Angled Curb Stop

A quick-connect sampling port and a protective cover are mounted on the side of the re-setter. The Model 1500 is constructed of bronze, brass and copper. Smaller meter sizes are available as the Model 1500.

Water samples are taken through the side-mounted quick-connect fitting using a sampling rod, which is carried from site to site by the operator. The sampling rod is sold separately.

Two types of quick connections are available: the brass “snap-in” quick connect or the stainless steel “screw-on” connection. Screw-on type connection indicated by “SVLV” Suffix on Model Number.

Installs In Existing Meter Pit

As Easy As 1,2 3:

  1. Remove Existing Meter
  2. Install the Sampling Station
  3. Reinstall Your Existing Meter

Ordering Information:

Part Number Configuration Meter Size Meter Laying Length
1500-1034A-xx Backflow 1” 10.75
1500-1034B-xx No Backflow / Curbstop 1” 10.75
1500-1034C-xx Backflow & Curbstop 1” 10.75

xx indicates the sample quick connection type: NL = Brass “Snap-In” type, SVLV= Stainless Steel “Screw-On” type

Contact Us to Order

  • Features

    • Two Types of Quick Connects Available
    • Provides Sampling Point on Public Right-of-Way
    • Simple, Quick Installation – Saves Labor
    • Provides Backflow Protection in A & C Configurations
    • All, Brass, Bronze and Copper Construction
    • Available in Four Meter Sizes: 5/8”, 5/8”x3/4”, Full ¾ and 1”
    Contact Us to Order

  • Installation Information

    • Location: Below Grade
    Contact Us to Order

  • Construction Materials

    Bronze, Brass and Copper

    Contact Us to Order

  • Quick Connection Type

    • NL = Brass Snap-In
    • SVLV = Stainless Steel Screw-on
    Contact Us to Order

  • Construction Materials

    Bronze, Brass and Copper

  • Installation Information

    • Location: Below Grade

  • Downloads

  • Part Information

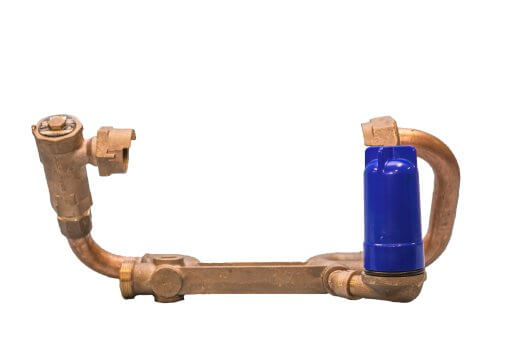

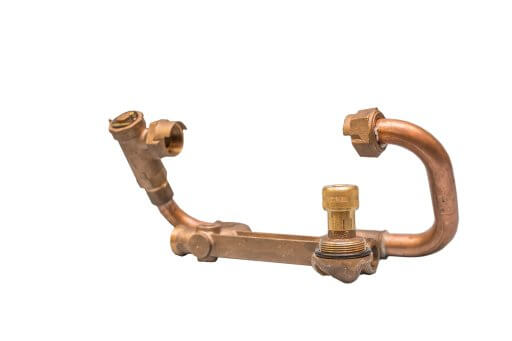

    • 1500-1034A-NL

      Below grade sampling station with stainless steel “snap-in” connection and angled backflow only.

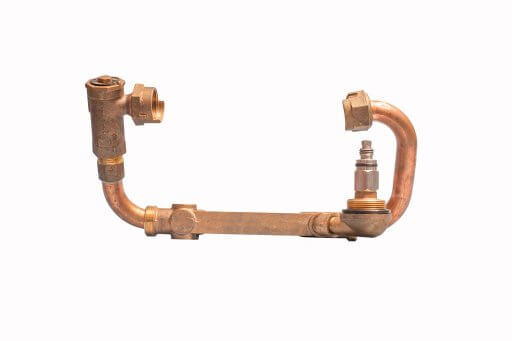

    • 1500-1034A-SVLV

      Below grade sampling station with stainless steel “screw-on” connection and angled backflow only.

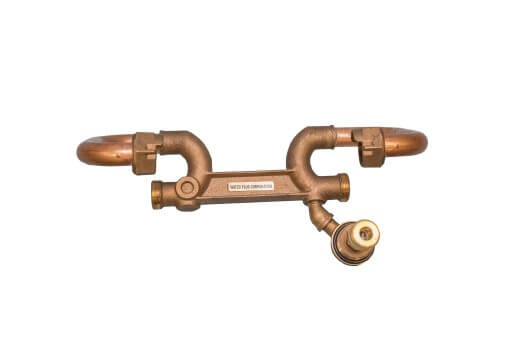

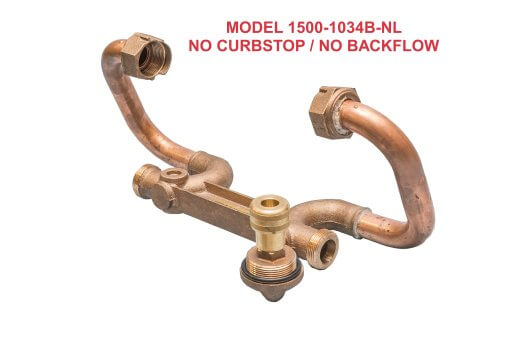

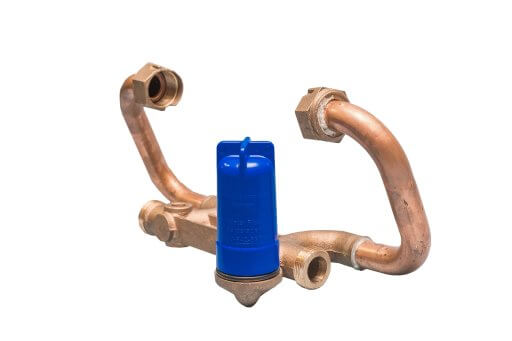

    • 1500-1034B-NL

      Below grade sampling station with stainless steel “snap-in” connection and no angled backflow and no angled curb stop.

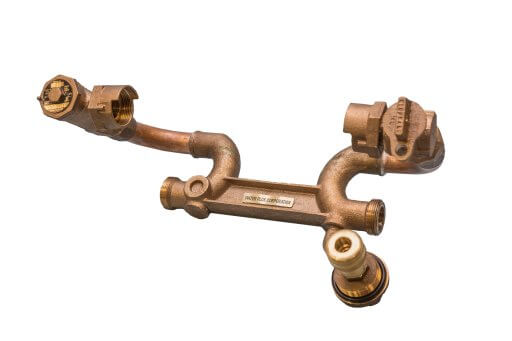

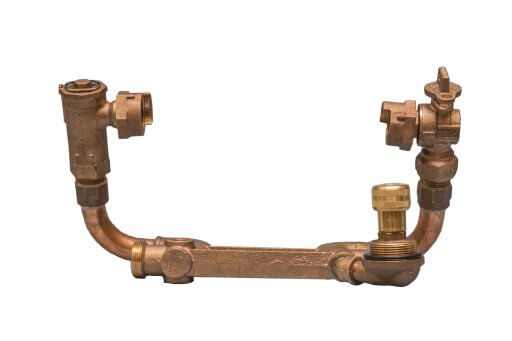

    • 1500-1034C-NL

      Below grade sampling station with stainless steel “snap-in” connection, angled backflow and angled curb stop.

  • Quick Connection Type

    • NL = Brass Snap-In
    • SVLV = Stainless Steel Screw-on
