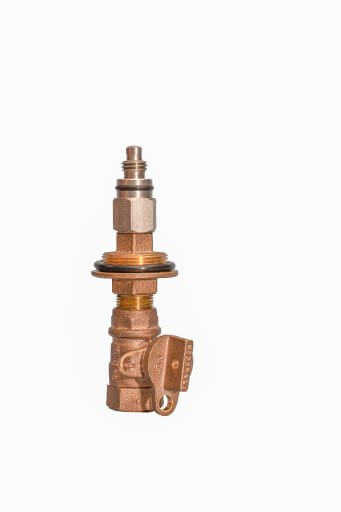

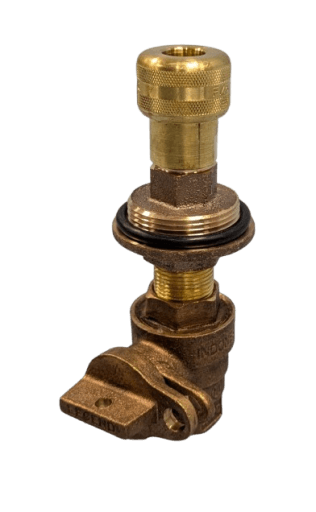

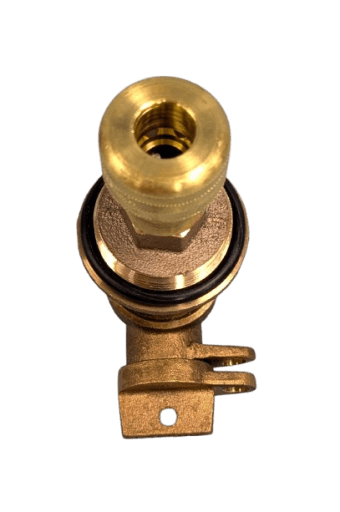

Model 950CS "Build Your Own" Sampling Point w Curb Stop

Model 950CS "Build Your Own" Sampling Point w Curb Stop

Model # 950CS

Product Description

Ideal For “Build Your Own” Sampling Station with Quick Connect & Curb Stop

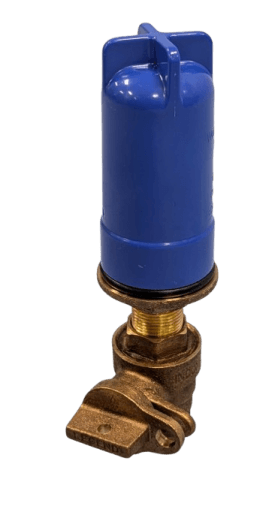

The Model 950CS will install on top of a customer-supplied standpipe.  The station consists of a quick connect sampling connection, a protective cap, and a lock-wing curb stop. The construction is all bronze with a ¾” FNPT inlet connection.  Other inlet connections are available.

This unit is ideal for customer supplied standpipe type installation.  The unit could be installed in a below grade meter box or our above grade enclosure model 101.

Two types of quick connections are available: the brass “snap-in” quick connect indicated by “NL” suffix on the model Number or the stainless-steel “screw-on” connection indicated by “SVLV” suffix on the model number.

Ordering Information:

Order Model 950CS-NL for brass “snap-in” quick connect.  The Model 950CS-BL-NL uses Sampling Rod Model 150G-SS

Order Model 950CS-SVLV for stainless steel “screw-on” quick connect.  The Model 950CS-BF-SVLV uses Sampling Rod Model 210G-SVLV

  • Features

    • Two Types of Quick Connects Available
    • Suitable for Utility-Supplied Standpipe
    • Provides Sampling Point on Public Right-of-Way
    • All Bronze or Bronze/Stainless-Steel Construction
    • Portable Sampling Rod Provides Sampling Access
  • Construction Materials

    Bronze

  • Quick Connection Type

    • NL = "Snap-In" Connection
    • SVLV = "Screw-On" Connection
  • Construction Materials

    Bronze

  • Downloads

    • Quick Connection Type

      • NL = "Snap-In" Connection
      • SVLV = "Screw-On" Connection
