150G-SS Sampling Rod

Product Description

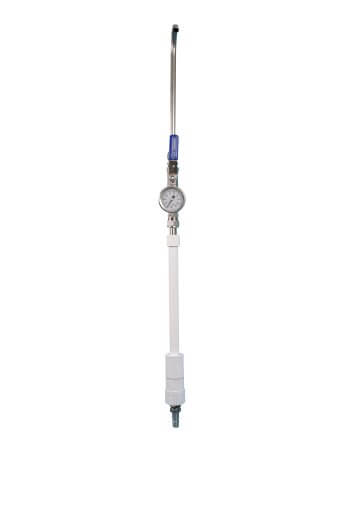

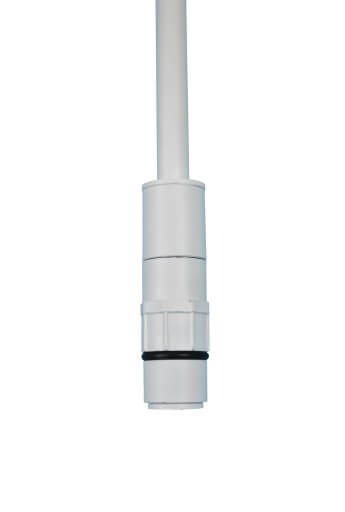

The Model 150 G-SS Sampling Rod is designed to be carried by the utility operator to each sampling site for sample collection. The rod is inserted into the female quick connect and with a downward force, the rod is locked into the female quick connect. The rod may then be flushed and flamed or decontaminated before sample collection. The rod is then disconnected from the sampling valve by simply pressing down on the PVC outer housing and the rod automatically disconnects from the sampling valve. The protective cap is then reinstalled on the sampling station and the utility operator then moves on to the next sampling site.

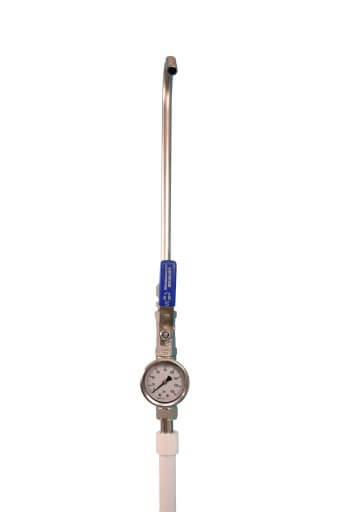

The Model 150G-SS is all stainless-steel with the exception of the outer PVC housing. The rod consists of a stainless steel spigot suitable for flaming or chlorine application, for decontamination. There is a stainless-steel throttling valve with a stainless steel handle for adjusting the water discharge to achieve an optimal flow for gathering the water sample.  A stainless-steel pressure gauge is provided for recording the water pressure at each sampling site. The pressure gauge has a 2″ dial reading 0-160 psi. The 150G-SS rod is completely non-corrosive, protecting against the highly corrosive properties of decontamination products.

The Model 150-SS is for the “snap-in” type quick connect valve.

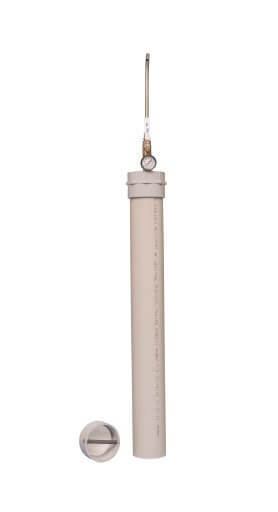

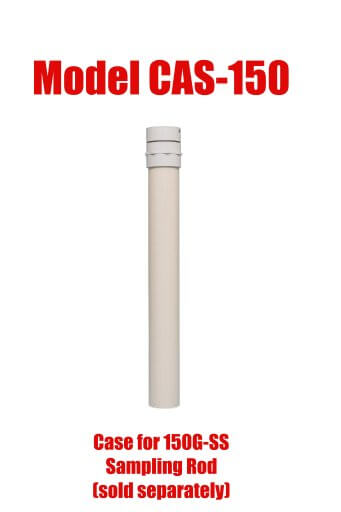

A PVC protective case for the rod is sold separately.  Order case model number is CAS-150.

The “screw-on” type quick connect valve, please order Sampling Rod Model 210G-SVLV.
