Model 301W-SS Above Grade Sampling Station

    Warm Climate Wet Barrel Design

    Product Description

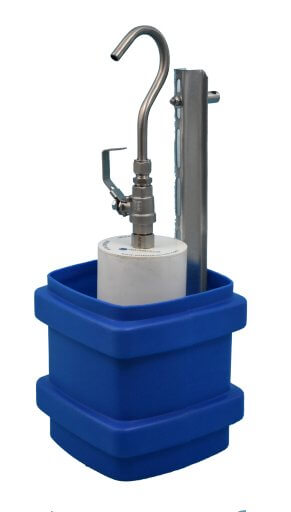

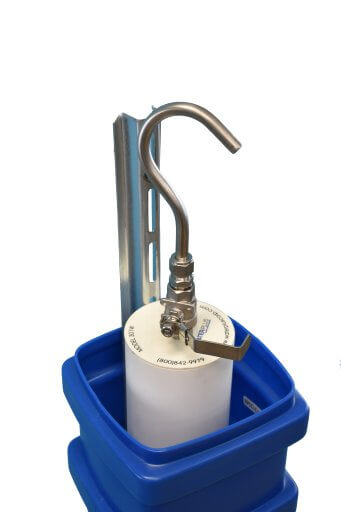

    The Model 301W sampling station features a highly impact-resistant polyethylene enclosure available in two standard colors: blue and green. Station security is accomplished through a locking hasp that accepts a standard padlock. Additional station security is provided by a stainless steel locking handle located on the throttling valve, which also accepts a standard padlock.

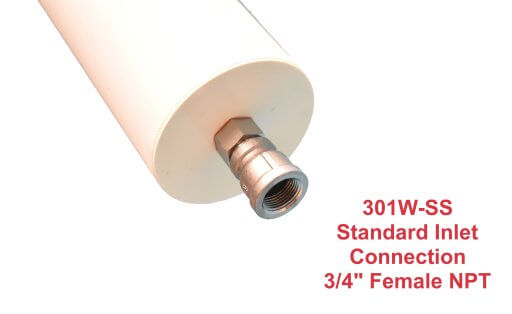

    The 301W features an all stainless steel waterway, stainless steel spigot for flaming, stainless steel throttling valve, ¾” stainless steel FNPT inlet connection (any inlet available), and a totally enclosed PVC housing which protects the waterway and insulation from any contact with the ground.

    The Model 301W features a wet barrel design for warmer climates. The 301W is activated and deactivated by opening and closing the spigot-mounted ball valve. Standard bury depth is 30″, with the ½” stainless steel waterway insulated with 1” wall thickness closed-cell elastomeric insulation from supply connection to the spigot-mounted ball valve.

    Contact Us to Order

    • Features

      • 100% Non-Corrosive
      • Stainless Steel Spigot for Flaming
      • All Stainless Steel Waterway
      • Insulated Waterway
      • Locking Valve and Cover
      • PVC Housing Prevents Direct Ground Contact
      • ¾ Stainless Steel FNPT Inlet Connection, Customer May Request Any Inlet as Required
      Contact Us to Order
