2" Post Flushing Hydrant

Model # 2B36A

Product Description

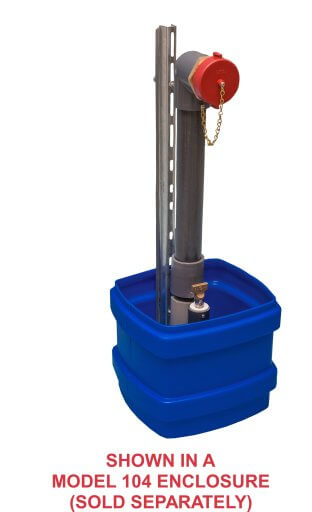

The model 2B36A is a 2″ post flushing hydrant. This unit will fit in our Model 104 enclosure if desired.

The unit is 100% non-corrosive, constructed from schedule 80 PVC, bronze, and stainless steel and is available in both regular and no lead versions.  The 2B36A operating valve stem is protected from direct ground contact by a PVC housing.

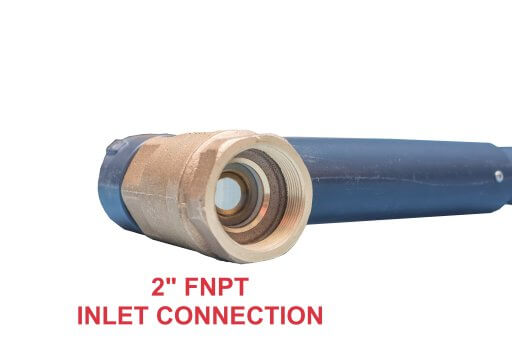

The outlet is 2½” NSF Fire Hydrant threads allowing the unit to provide a reduced level of fire protection. The inlet is 2” female NPT.

Freeze protection is accomplished by pumping the barrel free of water using a standard hand pump. The unit is available with an optional weep valve for self-draining freeze protection (order option #SD-VALVE).

The standard bury depth is 36”, with any bury depth available in 6” increments (order option # ADD6).

  • Features

    • Fits in Model 104 Polyethylene Enclosure
    • 100% Non-Corrosive
    • All Bronze, Stainless Steel and PVC Construction
    • Available in Lead-Free
    • American Made Apollo Valves
    • Discharge Direction Determined in the Field
    • Auto Drain Available
    • Any Bury Depth Available
  • Construction Materials

    Bronze, Stainless Steel, PVC

  • Enclosures For This Product

  • Construction Materials

    Bronze, Stainless Steel, PVC
