Above Grade Sampling Stations
MODEL 301W Warm Climate / Wet Barrel Design
Model # 301W
The Model 301W is an above grade sampling station for WARM climates. The 301W features all brass and stainless-steel waterway, stainless-steel spigot for flaming and a stainless-steel throttling ball valve. The standard inlet connection is a ¾” CTS bronze pack joint fitting however, any inlet fitting may be custom ordered. A totally enclosed PVC housing…
Model 301D - Above Grade - Cold Climate Sampling Station
Model # 301D
The Model 301D is an above grade sampling station for cold climates. The 301D features all brass and stainless steel waterway, stainless-steel spigot for flaming and a stainless-steel throttling valve. The standard inlet connection is a ¾” CTS pack joint fitting but any inlet fitting may be custom ordered. The unit features a totally enclosed…

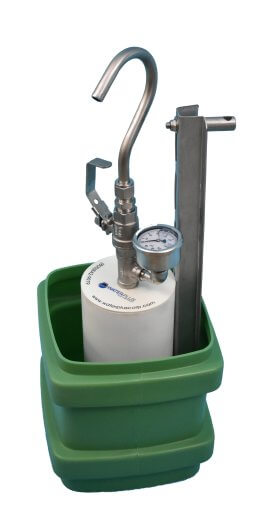

Model 301W-WPG Above Grade / Cold Climate Sampling Station with Pressure Gauge
Model # 301W-WPG
The Model 301W-WPG is identical to the Model 301W except that it includes an integrated pressure gauge for checking system pressure. The stainless-steel gauge is mounted below the top ball valve and reads pressure constantly. The stainless-steel pressure gauge has a 2″ diameter face. The pressure gauge is glycerin filled, with 0-160 psi on the…
Model 301D-WPG Above Grade / Cold Climate Sampling Station with Pressure Gauge
Model # 301D-WPG
The Model 301D-WPG is identical to the Model 301D except it includes an integrated pressure gauge for checking system pressure. The gauge is mounted below the top ball valve and reads pressure when the primary ball valve is activated and the secondary valve is closed. The stainless-steel gauge has a 2″ diameter face. The gauge…
Model 301W-SS - Warm Climate - Wet Barrel Design - All Stainless-Steel
Model # 301W-SS
The Model 301W-SS is almost identical to the Model 301W-NL, with the exception that the 301W-SS is ALL STAINLESS-STEEL. This unit is an above grade sampling station for WARM climates. The 301W-SS features all stainless-steel waterway, stainless-steel spigot for flaming and a stainless-steel throttling ball valve. The standard inlet connection is a ¾” FNPT stainless-steel…
Model 301W-SS-WPG - Warm Climate - Above Grade Sampling Station with Pressure Gauge
Model # 301W-SS-WPG
The Model 301W-SS-WPG is identical to the Model 301W-SS except that it includes an integrated pressure gauge for checking system pressure. The stainless-steel gauge is mounted below the top ball valve and reads pressure constantly. The stainless-steel pressure gauge has a 2″ diameter face. The pressure gauge is glycerin filled, with 0-160 psi on the…
Model 5000-NL 2” Flushing Hydrant/Sampling Point
Model # 5000-NL
The model 5000-NL Flush and Sample hydrant provides both 2” flushing capabilities as well as a ½” sampling tap. The unit will fit in our model 104 lockable polyethylene enclosure for security and aesthetics. The optional enclosure is available in both blue and green colors and is locked by a standard pad lock. The unit…
Model 501-NL ¾” Flushing Hydrant/Sampling Point
Model # 501-NL
The model 501-NL Flush and Sample hydrant provides ¾” flushing capabilities as well as a sampling point. The unit is mounted in the included Model 101 lockable polyethylene enclosure. The unit is 100% non-corrosive, constructed from brass, bronze, stainless steel, and meets all “no lead” requirements. The 501 operating valve stem is protected from direct…
