Model 501-NL-xx ¾” Flushing Hydrant/Sampling Point

Flush and Sample

Model # 501-NL-xx

Product Description

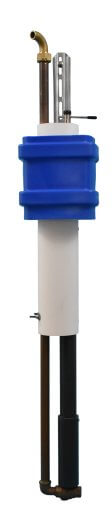

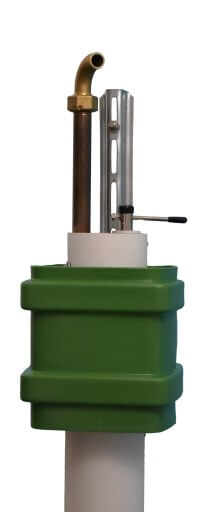

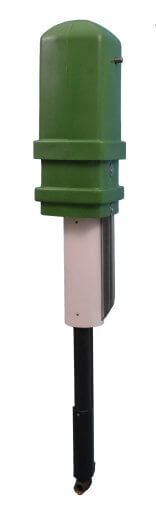

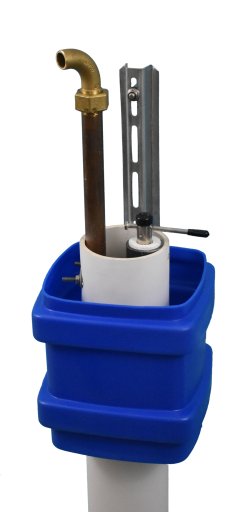

The model 501-NL Flush and Sample hydrant provides ¾” flushing capabilities as well as a sampling point. The unit is mounted in the included Model 101 lockable polyethylene enclosure.

The unit is 100% non-corrosive, constructed from brass, bronze, stainless steel, and meets all “no lead” requirements. The 501 operating valve stem is protected from direct ground contact by a PVC housing.

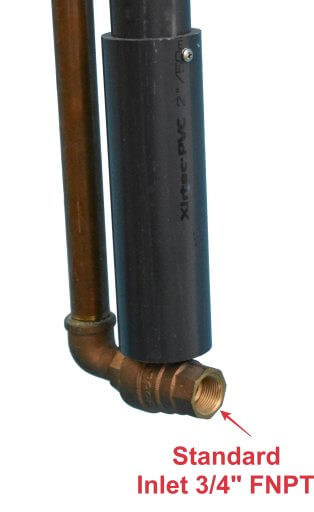

The outlet is ¾”, 90-degree ell, and can swivel 360 degrees for any direction discharge. The 90-degree swivel discharge is replaceable with a sealed protective cap.  The cap is left in place when the unit is not in use. The main valve is operated by turning the operating handle ¼ turn clockwise. The sampling tap is a ¾” bronze spigot with no threads to harbor bacteria. The inlet is ¾” female NPT.

Freeze protection is accomplished by pumping the barrel free of water using a standard hand pump. Standard depth bury is 36”, with 48” and 60” available.  When ordering substitute bury depth for the xx suffix.

Contact Us to Order

  • Features

    • Provides Flushing and Sampling Points
    • 100% Non-Corrosive
    • All Bronze, Stainless Steel and PVC Construction
    • 3/4” Thread-Free Sampling Outlet
    • Lead-Free
    • American Made Valves
    • Mounted in Included Model 101 lockable Polyethylene Enclosure
    • Outlet has Protective Cap when Not in Use
    Contact Us to Order

  • Construction Materials

    Brass, Bronze, Stainless Steel, PVC

    Contact Us to Order

  • Quick Connection Type

    • NL = "Snap-In" Connection
    Contact Us to Order

  • Enclosures For This Product

    Contact Us to Order

  • Construction Materials

    Brass, Bronze, Stainless Steel, PVC

  • Downloads

  • Quick Connection Type

    • NL = "Snap-In" Connection

Related Products

  • WaterPlus-5000-NL with Enclosure 2

    Hydrants

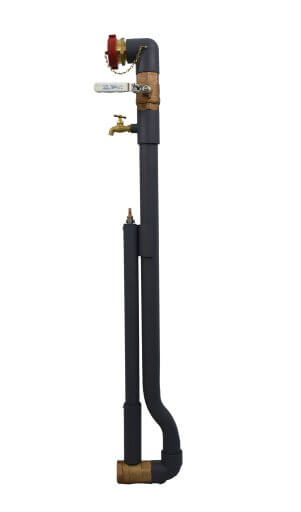

    Model 5000-NL 2” Flushing Hydrant/Sampling Point

    Model # 5000-NL

    The model 5000 Flush and Sample hydrant provides both 2” flushing capabilities as well as a ½” sampling tap. The unit will fit in our model 104 lockable polyethylene enclosure for security and aesthetics. The unit is 100% non-corrosive, constructed from brass, bronze, stainless steel, schedule 80 PVC, and meets all “no lead” requirements. The…

  • WaterPlus-2B36A 2

    Hydrants

    2" Post Flushing Hydrant

    Model # 2B36A

    The model 2B36A is a 2″ post flushing hydrant. This unit will fit in our Model 104 enclosure if desired. The unit is 100% non-corrosive, constructed from schedule 80 PVC, bronze, and stainless steel and is available in both regular and no lead versions.  The 2B36A operating valve stem is protected from direct ground contact…

  • WaterPlus-VB2000B 4

    Hydrants

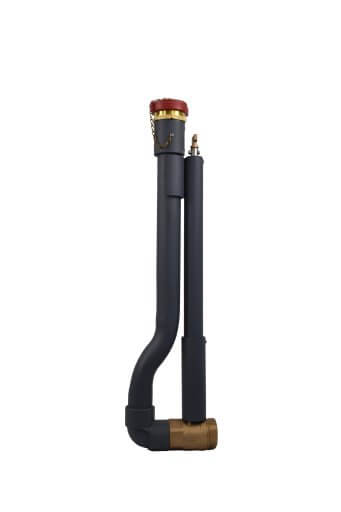

    Model VB2000B 2” Flushing Hydrant
